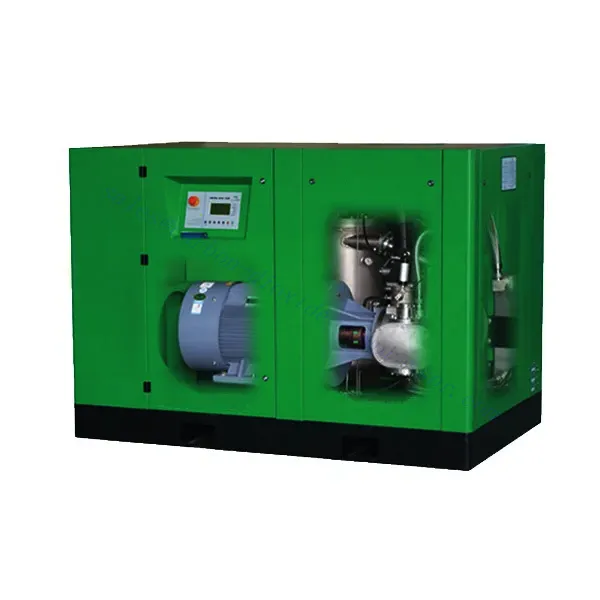

CM/BV Series Carbon Dioxide Compressor

As one of the carbon dioxide compressor manufacturers, suppliers, and exporters of mechanical products, We offer carbon dioxide compressors and many other products.

Please get in touch with us for details.

Mail:sales@carbon-dioxide-compressor.com

Manufacturer supplier exporter of carbon dioxide compressor.

CM/BV Series Carbon Dioxide Compressor

A carbon dioxide compressor is a device that increases the pressure of carbon dioxide gas. It is used in a variety of applications, including food and beverage processing, industrial manufacturing, and medical research.

Carbon dioxide compressors use pistons to push gas through a series of chambers. The piston is driven by a motor, and the two chambers are connected to a discharge tube. As the piston moves, it compresses the gas, which increases its pressure. The compressed gas is then discharged through a drain pipe.

CM/BV Series Carbon Dioxide Compressor Parameters:

Fixed Speed Series

Model	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight	Pipe diameters of cooling water inlet and outlet	Cooling fan Power	Dimension	Air outlet
	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight		Water entering32℃	L×W×H
	MPa	M³/min	cfm	kW	℃	dB(A)	kg		T/h	mm
CM45D	0.12～0.25	13.80	487	45	≤45	70	1720	1 1/2ʺ	12	2200×1350×1530	DN65
CM55D	0.25～0.40	13.60	480	55		70	1750	1 1/2ʺ	18
CM75D	0.25~ 0. 40	20.1	710	75		72	2300	2 1/2″	20
CM132D	0.12～0.25	43.00	1518	132		78	4380	3ʺ	30	3100×1700×2090	DN125
CM160D	0.25～0.40	42.88	1514	160		78	4500	3ʺ	35	3100×1700×2090	DN125

VSD Series

Model	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight	Pipe diameters of Cooling water inlet and outlet	Cooling fan Power	Dimension	Air outlet
	Work pressure	FAD		Power	Air Supply temperature	Noise	Weight		Water entering 32℃	L×W×H
	MPa	M³/min	cfm	kW	℃	dB(A)	kg		T/h	mm
CM45DV	0.12~0.25	5.50~13.80	194-487	45	≤45	70	1720	1 1/2ʺ	12	2200×1350×1530	DN65
CM55DV	0.25~0.40	5.40~13.60	191-480	55		70	1750	1 1/2ʺ	18
CM75DV	0.25~0.40	8.04~20.1	282-710	75		72	2300	2 1/2″	20
CM132DV	0.12~0.25	17.20~43.00	607-1518	132		78	4380	3ʺ	30	3100×1700×2090	DN125
CM160DV	0.25~0.40	17.10~42.88	604-1514	160		78	4500	3ʺ	35	3100×1700×2090	DN125

CM/BV Series Carbon Dioxide Compressor Feature:

Energy Saving: Energy saving more than 15% compared with dry oil-free compressors.

Environmental protection: do not use any lubricating oil to avoid environmental pollution.

Reliability: No oil is guaranteed.
