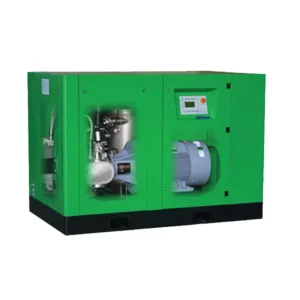

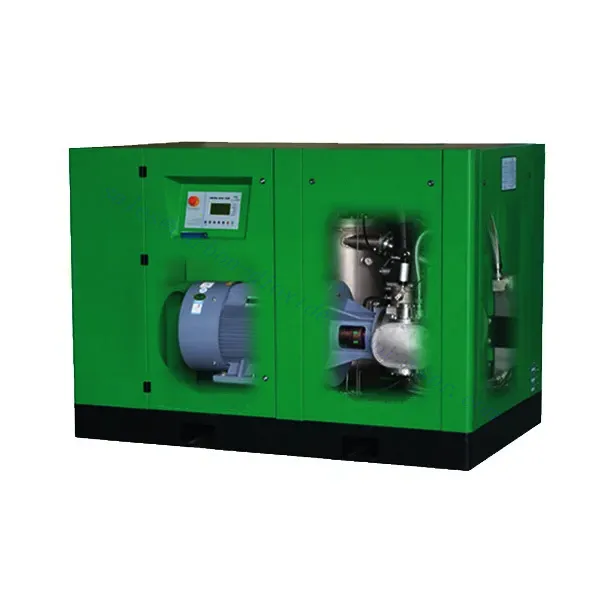

CM/PV Series Carbon Dioxide Compressor

A carbon dioxide compressor is a device that increases the pressure of carbon dioxide gas. It is used in a variety of applications, including food and beverage processing, industrial manufacturing, and medical research.

Carbon dioxide compressors use pistons to push gas through a series of chambers. The piston is driven by a motor, and the two chambers are connected to a discharge tube. As the piston moves, it compresses the gas, which increases its pressure. The compressed gas is then discharged through a drain pipe.

CM/PV Series Carbon Dioxide Compressor Parameters:

Model  Work pressure FAD Power Noise Weight

Pipe diameters of cooling water inlet

Cooling fan power Dimension Air outlet
and outlet
MPa Psi m³/min cfm kW HP dB(A) kg  Water entering32℃ L×W×H
T/h mm
CM08PVF 0.8 116 0.45-1.15 16-41 7.5 10 58 630 DN25 2 1550×775×1445
1 145 0.41-1.02 14-36 500 1350×774×1150
CM11PVF 0.8 116 0.62-1.55 22-55 11 15 58 650 DN25 2.5 1550×775×1445
1 145 0.53-1.32 19-47 520 1350×774×1150
1.25 181 0.48-1.02 17-36
CM15PVF 0.8 116 0.96-2.40 34-85 15 20 63 900 DN25 3.5 1900×1000×1635
1 145 0.85-2.12 30-75
750 1680×1000×1335
1.25 181 0.64-1.61 23-57
CM18PVF 0.8 116 1.24-3.10 44-109 18.5 25 65 970 DN25 4 1900×1000×1635
1 145 1.05-2.62 37-93
820 1680×1000×1335
1.25 181 0.85-2.13 30-75
CM22PVF 0.8 116 1.40-3.50 49-124 22 30 65 1000 DN25 5 1900×1000×1635
1 145 1.25-3.13 44-111
850 1680×1000×1335
1.25 181 1.04-2.61 37-92
CM30PVF 0.8 116 2.00-5.00 71-177 30 40 66 1200 DN40 7 1950×1050×1780 1 1/2ʺ
1 145 1.68-4.20 59-148
1300 1900×1050×1430
1.25 181 1.52-3.18 54-112
CM37PVF 0.8 116 2.44-6.10 86-215 37 50 67 1230 DN40 9 1950×1050×1780 1 1/2ʺ
1 145 2.09-5.22 74-184
1320 1900×1050×1430
1.25 181 1.92-4.81 68-170
CM45PVF 0.8 116 3.12-7.80 110-275 45 60 68 1930 DN40 10 3040×1280×1800
1 145 2.45-6.13 87-216
1430 2200×1350×1530
1.25 181 2.26-5.65 80-200
CM55PVF 0.8 116 3.84-9.60 136-339 55 75 70 2050 DN40 12 3040×1280×1800
1 145 3.44-8.60 121-304
1550 2200×1350×1530
1.25 181 2.97-7.42 105-262
CM75PVF 0.8 116 5.16-12.90 182-455 75 100 73 2450 DN40 18 3040×1280×1800
1 145 4.57-11.42 161-403
1790 2200×1350×1530
1.25 181 3.93-9.83 139-347
CM90PV 0.8 116 6.52-16.30 230-576 90 125 73 2160 DN40 20 2500×1400×1580 2 1/2ʺ
1 145 5.81-14.52 205-513
1.25 181 4.92-12.30 174-434
CM110PV 0.8 116 7.76-19.40 274-685 110 150 78 2270 DN40 24 2500×1400×1580 2 1/2ʺ
1 145 6.76-16.90 239-597
1.25 181 6.04-15.10 213-533
CM132PV 0.8 116 8.88-22.21 314-784 132 180 78 2350 DN50 30 2500×1400×1580 2 1/2ʺ
1 145 8.15-20.38 288-720
1.25 181 7.31-18.29 258-646
CM160PV 0.8 116 11.54-28.85 407-1019 160 220 78 3720 DN80 35 3100×1700×2090 DN100
1 145 9.81-24.52 346-866
1.25 181 8.87-22.17 313-783
CM200PV 0.8 116 14.65-36.63 517-1293 200 270 78 3750 DN80 43 3100×1700×2090 DN100
1 145 13.10-32.70 463-1155
1.25 181 11.09-27.72 392-979
CM250PV 0.8 116 17.15-42.88 606-1514 250 340 78 3900 DN80 53 3100×1700×2090 DN100
1 145 15.60-39.00 551-1377
1.25 181 13.87-34.64 490-1223
CM320PV 0.8 116 23.64-59.10 835-2087 320 430 80 4850 DN100 60 3600×2800×2000 DN125
1 145 21.40-53.50 756-1889
1.25 181 19.30-48.25 681-1704

CM/PV Series Carbon Dioxide Compressor Feature:

The new model is 15%-20% more energy efficient than piston air compressors. After the piston ring and cylinder body wear, it saves 30%-40% more power than the piston air compressor. Two years of saving is equivalent to the cost of buying a machine.

Box design, no vibration, low noise, small volume.

Fewer consumables, low cost.

Environmental protection, oil-free design, ISO08573-1 oil-free certification.

Isothermal compression, low exhaust temperature, and low water content of compressed air.
