CM/G Series Carbon Dioxide Compressor

As one of the carbon dioxide compressor manufacturers, suppliers, and exporters of mechanical products, We offer carbon dioxide compressors and many other products.

Please get in touch with us for details.

Mail:sales@carbon-dioxide-compressor.com

Manufacturer supplier exporter of carbon dioxide compressor.

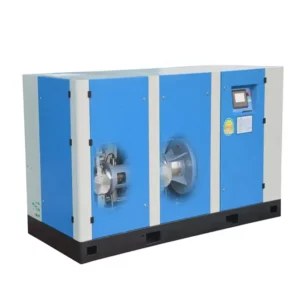

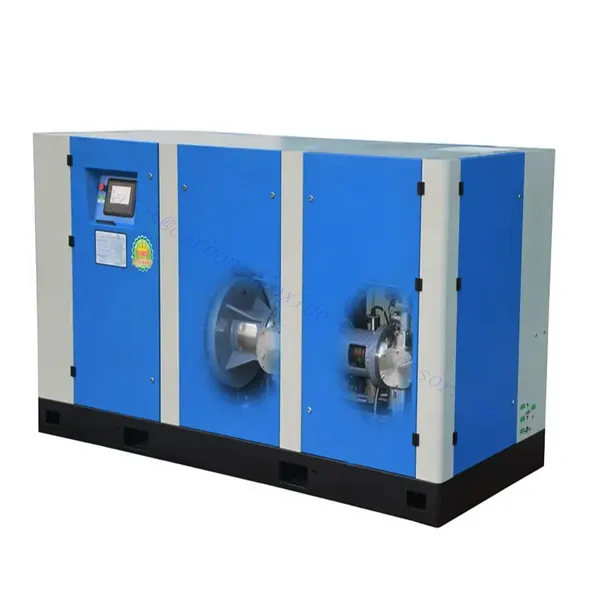

CM/G Series Carbon Dioxide Compressor

A carbon dioxide compressor is a device that increases the pressure of carbon dioxide gas. It is used in a variety of applications, including food and beverage processing, industrial manufacturing, and medical research.

Carbon dioxide compressors use pistons to push gas through a series of chambers. The piston is driven by a motor, and the two chambers are connected to a discharge tube. As the piston moves, it compresses the gas, which increases its pressure. The compressed gas is then discharged through a drain pipe.

CM/G Series Carbon Dioxide Compressor Parameters:

Model Work pressure FAD Power Noise Weight Cooling water quantity Dimension
L×W×H
Outlet Diameter
MPa Psi m³/min cfm kW HP dB(A) kg T/h mm mm
CM55G 2.0-3.0 290-435 6.3 222 55 75 70 1950 18 2750×1250×1480 DN32
CM55G 2.0-4.0 290-580 5.2 184 55 75 70 1950 18 2750×1250×1480 DN32
CM75G 2.0-4.0 290-580 6.3 222 75 100 70 1960 18 2750×1250×1480 DN32
CM110G 2.0-4.0 290-580 10.2 360 110 150 72 2630 24 3000×1350×1540 DN32
CM130GPV 2.0-3.0 290-435 5.4-13.5 128-455 55 75 75 3000 35 2500×2000×1550 DN32
75 100
CM150GPV 2.0-4.0 290-580 5.4-13.5 191-477 75 100 75 3100 35 2500×2000×1550 DN32
75 100
CM242GPV 2.0-4.0 290-580 9.6-24.0 339-847 110 150 75 3950 50 2760×2250×1670 DN40
132 180

CM/G Series Carbon Dioxide Compressor Feature:

The new model is 15%-20% more energy efficient than piston air compressors. After the piston ring and cylinder body wear, it saves 30%-40% more power than the piston air compressor. Two years of saving is equivalent to the cost of buying a machine.

Box design, no vibration, low noise, small volume.

Fewer consumables, low cost.

Environmental protection, oil-free design, ISO08573-1 oil-free certification.

Isothermal compression, low exhaust temperature, and low water content of compressed air.





We are one of the best food compressor suppliers. We have exported our products to clients around the world and earned a good reputation because of our superior product quality and after-sales service. We warmly welcome customers both at home and abroad to contact us to negotiate business, exchange information, and cooperate with us!
